Take adventure by the reins with the Aventure.2 Step-Through, fully loaded with a torque sensor. Simply slip into the saddle and let its torque sensor amplify your pedaling efforts. Its intelligent technology recognizes your physical output and matches it, promoting a more natural riding experience.

GENERAL INFO

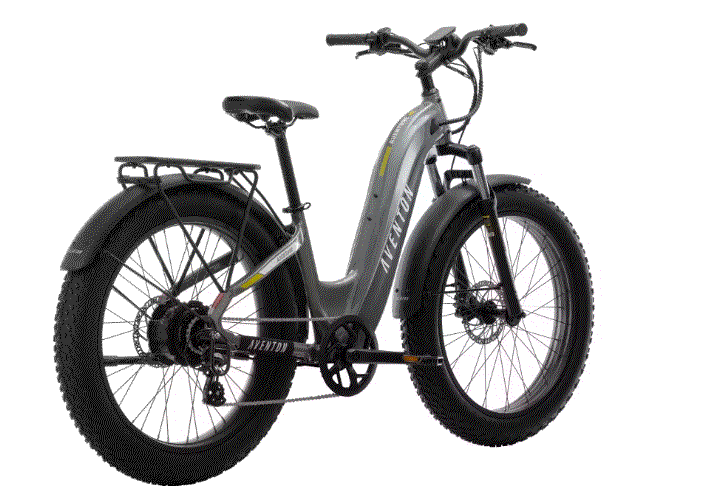

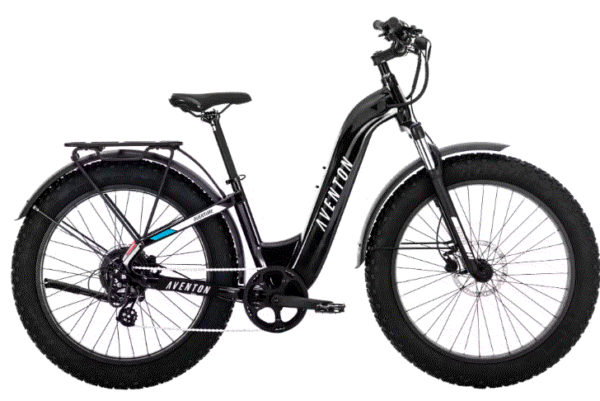

MODEL: Aventure.2 Step-Through Ebike
SPEED: 28 MPH
PEDAL ASSIST: 4 Levels
RANGE: Up to 60 miles
WEIGHT: 77 lbs
TOTAL WEIGHT LIMIT: 400 lbs
IDEAL USE: All-Terrain
FOLDING: No
RIDER HEIGHT: 4’11” – 6’1″

FRAMESET

FRAME: Single-Butted Aluminum Alloy
FORK: Suspension Fork with 80mm travel, with lockout
FRAME STYLE: Step-Through

WHEELSET

RIM: Double Wall Aluminum 36h Front & Rear
SPOKES: Black Stainless 13G Front / 12G Rear
TUBES: Butyl Rubber, Schrader Valve
HUBS: Hubs: 36H Disc Nutted Front, Nutted Rear
TIRES: 26 x 4

EBIKE SYSTEM

MOTOR: 750w (sustained), 48v Rear Hub
THROTTLE: Throttle on demand
DISPLAY: LCD Smart “Easy Read”
BATTERY: 48V, 15Ah (720Wh), LG Cell, UL 2849 Compliant
SENSORS: Torque Sensor
CHARGER: 48V, 3 Amp Fast Charger
LIGHTS: Integrated

BRAKES

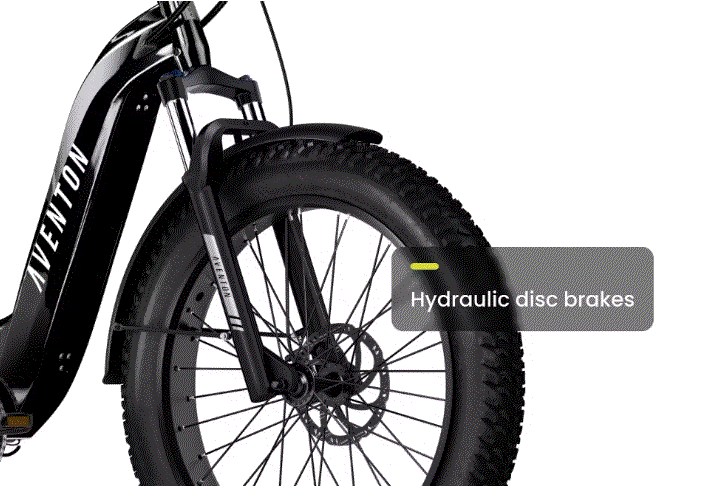

BRAKES: Hydraulic

DRIVETRAIN

BOTTOM BRACKET: Square Taper, Sealed, Torque Sensor
PEDALS: 9/16″ Alloy Platform
CRANKSET: 170mm w/ 48 T
REAR DERAILLEUR: Shimano 8 speed
SHIFT LEVER: 8 Speed Trigger
CHAIN: 122 Link, 8 Speed
CASSETTE: 12-32T, 8 Speed

COCKPIT

SADDLE: Aventon by Velo
SEATPOST: Forged Alloy, 30.9mm 2-Bolt Clamp
STEM: Threadless, 31.8mm, 8 Degree Rise
SEAT CLAMP: 34.9mm Quick Release
HANDLEBARS: Aluminum 31.8mm, 680mm
HEADSET: Sealed Bearing Headset
GRIPS: Ergonomic Comfort

INCLUDED ACCESSORIES

KICKSTAND: Included, rear mount
REAR RACK: Included
FENDERS: Included

MISCELLANEOUS

SUSPENSION: Front

Technical Overview

The Aventure.2 comes out of the box as a Class II ebike, with pedal assist and throttle going up to 20 MPH . It can be unlocked to a Class III ebike and can go up to 28 MPH on pedal assist. The Aventure.2 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain or submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Using PAS 1 throughout flat terrain with a rider weight of 160 lb.
