TECHNICAL SPECIFICATIONS

GENERAL INFO

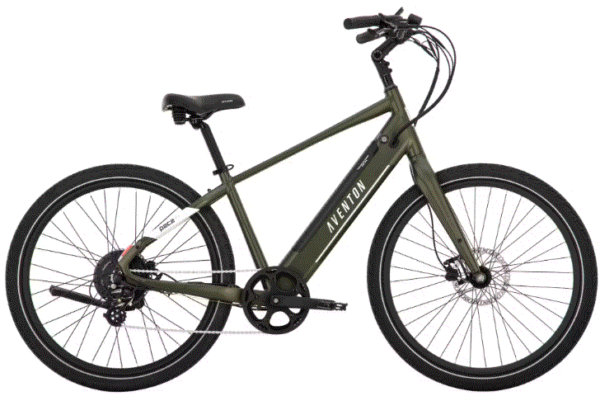

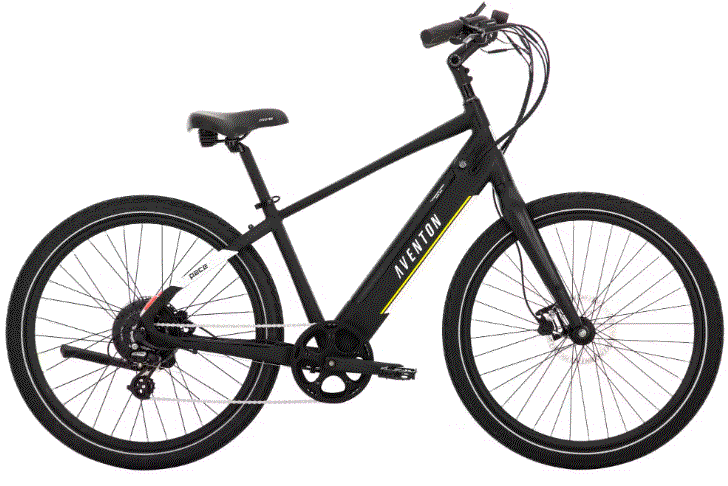

MODEL: Pace 500.3 Ebike
SPEED: 28 MPH
PEDAL ASSIST: 4 Levels
RANGE: Up to 60 miles
WEIGHT: 52 lbs
TOTAL WEIGHT LIMIT: 300 lbs
DIMENSIONS: Bike Box 150cm x 27cm x 86cm
IDEAL USE: Cruising
FOLDING: No
RIDER HEIGHT: 5’3″ – 6’4″

FRAMESET

FRAME: Single-Butted Aluminum Alloy
FORK: AE-E08 PACE V2 AL fork
FRAME STYLE: Step-Over

WHEELSET

RIM: Double Wall Aluminum 36h Front & Rear
TUBES: Butyl Rubber, Schrader Valve

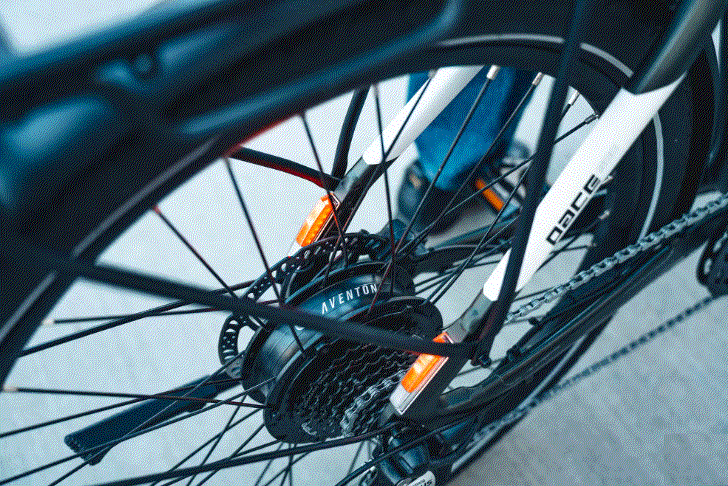

HUBS: Hubs: 36H Disc Nutted Front, Nutted Rear
TIRES: 27.5 x 2.1 Puncture Resistant, Reflective Sidewalls

EBIKE SYSTEM

MOTOR: 500w, 48v

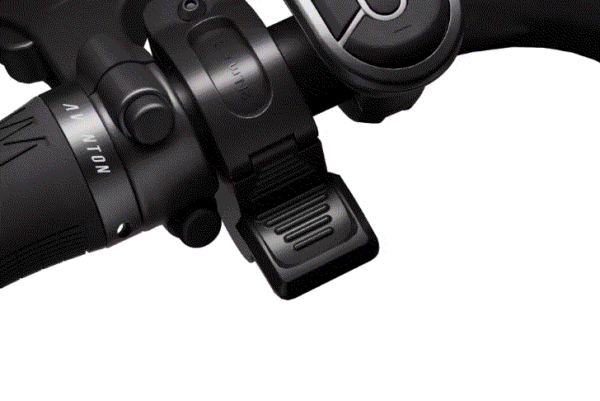

THROTTLE: Throttle on demand
DISPLAY: LCD Smart “Easy Read”
BATTERY: 48V, 12.8Ah (614Wh), LG Cell, UL 2849 Compliant
SENSORS: Torque Sensor
CHARGER: 48V, 3 Amp Fast Charger
LIGHTS: Front and rear lights integrated

BRAKES

BRAKES: Hydraulic

DRIVETRAIN

PEDALS: 9/16″ Alloy Platform
BOTTOM BRACKET: Square Taper, Sealed, Torque Sensor
CRANKSET: 170mm w/ 48 T
REAR DERAILLEUR: Shimano 8 speed
CASSETTE: 12-32T, 8 Speed
SHIFT LEVER: 8 Speed Trigger
CHAIN: 122 Link, 8 Speed

COCKPIT

SADDLE: Aventon Saddle
SEATPOST: Forged Alloy, 30.9mm 2-Bolt Clamp

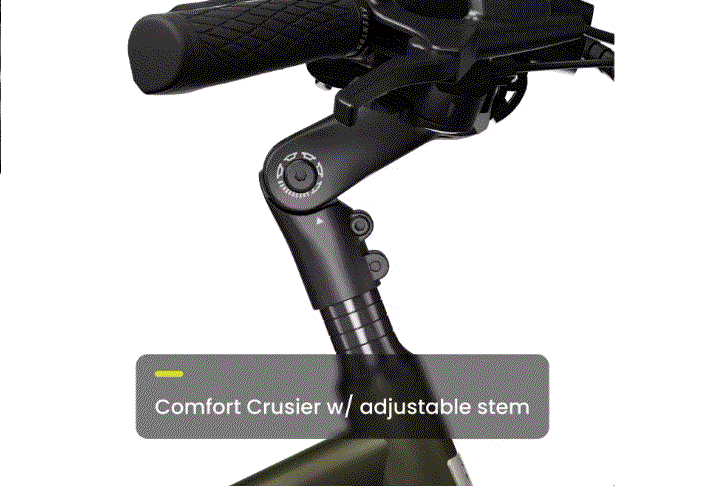

STEM: Threadless, 31.8mm, 90mm
SEAT CLAMP: 34.9mm Quick Release
HANDLEBARS: Aluminum 31.8mm, Sweptback
HEADSET: Sealed Bearing Headset
GRIPS: Ergonomic Comfort

INCLUDED ACCESSORIES

KICKSTAND: Included, rear mount
FENDERS: Optional
REAR RACK: Optional

MISCELLANEOUS

SUSPENSION: None

Technical Overview

The Pace 500.3 comes out of the box as a Class II ebike, with pedal assist and throttle going up to 20 MPH. It can be unlocked to a Class III ebike and can go up to 28 MPH on pedal assist. The Pace 500.3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain or submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Using PAS Eco throughout flat terrain with a rider weight of 160 lb.
