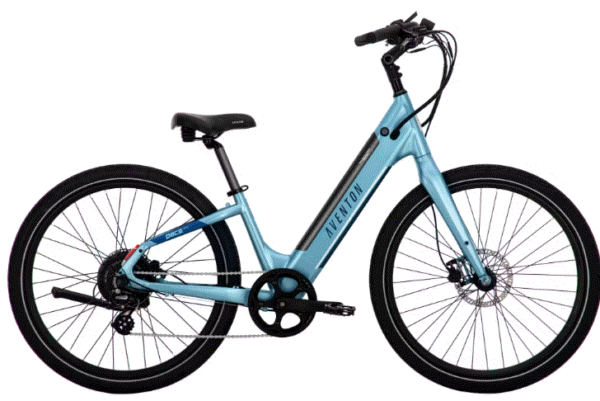

Pace 500.3 Step-Through is easy access to fun! Its intuitive torque sensor amplifies your efforts and puts you in control of the way you cruise. Find renewed energy then set the pace at your leisure by switching between the 4 new pedal assist levels: eco, tour, sport and turbo. Take the longer route with its powerful 500W motor’s top speed of 28 mph and up to 60 miles in range. The all-new turn signal functionality will keep you protected on the road by signaling to those behind you when you’re switching lanes and making moves. Ride comfortably with its cushioned saddle, swept-back handlebars and an upright riding position. Pace 500.3 Step-Through reinvigorates the way you get around. It’ll feel like riding a bicycle for the first time, every time.
TECHNICAL SPECIFICATIONS
GENERAL INFO
MODEL: Pace 500.3 Step-Through Ebike
SPEED: 28 MPH:
PEDAL ASSIST: 4 Levels
RANGE: Up to 60 miles
WEIGHT: 52 lbs
TOTAL WEIGHT LIMIT: 300 lbs
DIMENSIONS: Bike Box 150cm x 27cm x 86cm
IDEAL USE: Cruising
FOLDING: No
RIDER HEIGHT: 4’11” – 6’1″
FRAMESET
FRAME STYLE: Step-Through
FRAME: Single-Butted Aluminum Alloy
FORK: AE-E08 PACE V2 AL fork
WHEELSET
RIM: Double Wall Aluminum 36h Front & Rear
TUBES: Butyl Rubber, Schrader Valve
HUBS: Hubs: 36H Disc Nutted Front, Nutted Rear
TIRES: 27.5 x 2.1 Puncture Resistant, Reflective Sidewalls
EBIKE SYSTEM
MOTOR: 500w, 48v

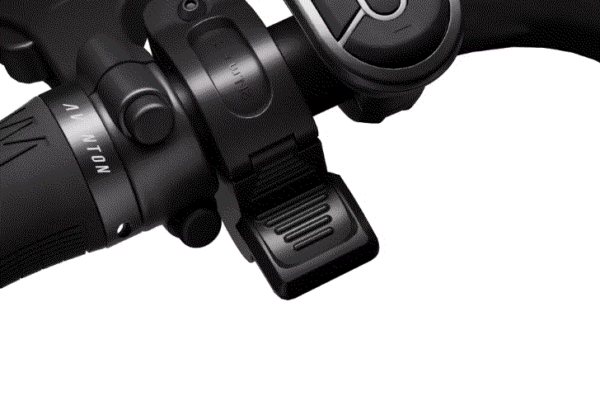

THROTTLE: Throttle on demand
DISPLAY: LCD Smart “Easy Read”
BATTERY: 48V, 12.8Ah (614Wh), LG Cell, UL 2849 Compliant
SENSORS: Torque Sensor
CHARGER: 48V, 3 Amp Fast Charger
LIGHTS: Front and rear lights integrated
BRAKES
BRAKES: Hydraulic
DRIVETRAIN
BOTTOM BRACKET: Square Taper, Sealed, Torque Sensor
PEDALS: 9/16″ Alloy Platform
CRANKSET: 170mm w/ 48 T
CASSETTE: 12-32T, 8 Speed
REAR DERAILLEUR: Shimano 8 speed
SHIFT LEVER: 8 Speed Trigger
CHAIN: 122 Link, 8 Speed
COCKPIT
SADDLE: Aventon Saddle
SEATPOST: Forged Alloy, 30.9mm 2-Bolt Clamp

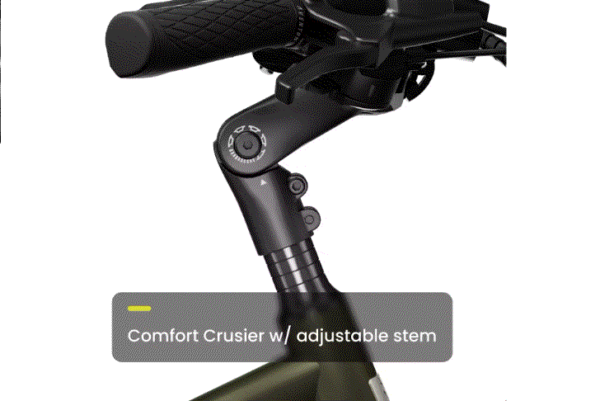

STEM: Threadless, 31.8mm, 90mm
SEAT CLAMP: 34.9mm Quick Release
HANDLEBARS: Aluminum 31.8mm, Sweptback
HEADSET: Sealed Bearing Headset
GRIPS: Ergonomic Comfort
INCLUDED ACCESSORIES
KICKSTAND: Included, rear mount
REAR RACK: Optional
FENDERS: Optional
MISCELLANEOUS
SUSPENSION: None
Technical Overview
The Pace 500.3 comes out of the box as a Class II ebike, with pedal assist and throttle going up to 20 MPH. It can be unlocked to a Class III ebike and can go up to 28 MPH on pedal assist. The Pace 500.3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain or submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Using PAS Eco throughout flat terrain with a rider weight of 160 lb.
