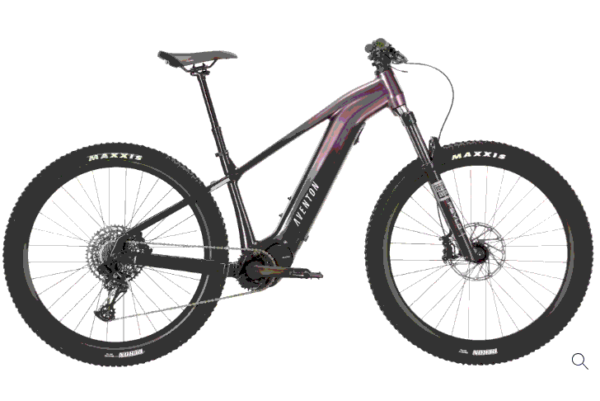

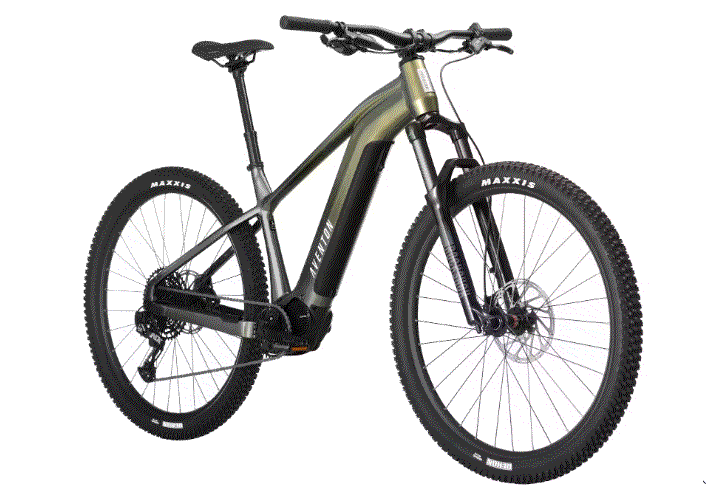

Carve out the uncommon route with Ramblas, Aventon’s first-ever electric mountain bike (eMTB) with an intelligent mid-drive motor. Rugged and reliable, this hardtail, all-terrain ebike offers the ultimate comfort on mountain trails or city streets. Engage its three pedal assist levels, top speed of 20 mph, and range of up to 80 miles to roam, ramble, and revel in the more dynamic side of the ride. With Ramblas, it’s mountain time, all the time.

Aventon’s Ramblas comes equipped with a first-ever mid-drive motor for the Aventon line-up. The mid-drive is Aventon-designed offering riders personalized tuning capabilities through the Aventon app for an amplified natural riding experience. Adjust the three PAS levels to fine-tune its overall rideability.

TECHNICAL SPECIFICATIONS

GENERAL INFO

MODEL: Ramblas eMTB
WEIGHT: 54lbs, size large, w/o pedals
TOTAL WEIGHT LIMIT: 300 lbs
IDEAL USE: Mountain Biking, Urban Riding
SPEED: 20 MPH
RANGE: Up to 80 miles
PEDAL ASSIST: 3 Levels

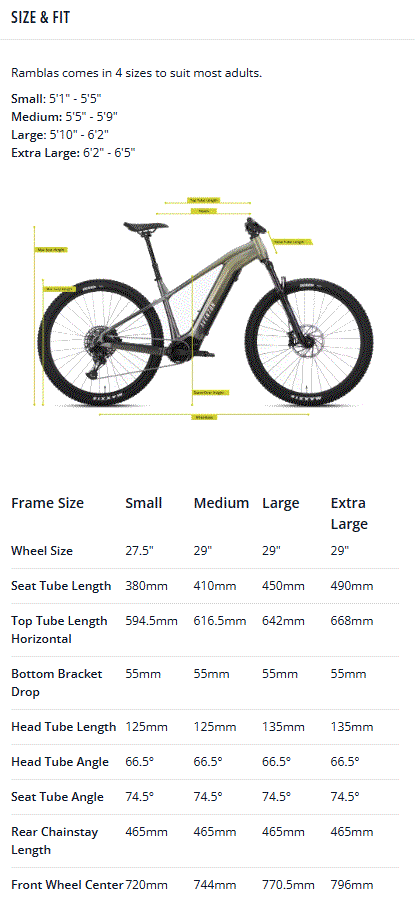

RIDER HEIGHT: 5’1″ – 6’5″

FRAMESET

FORK: BOREALIS: RockShox 35 Silver R 130mm travel. Coil, 44mm offset, 15×110 QR axle, 1.5″ tapered steerer tube AURORA: Rockshox Psylo Silver R, 35mm Stanchions, coil, 44mm offset, 15x110mm BOOST, 1.5″tapered steerer tube, Rebound adjust
FRAME: 6061 Single-Butted Aluminum Alloy
FRAME STYLE: Step-Over

WHEELSET

HUBS: 15×110 32H Front, 12×148 32H Rear
RIM: Double Wall Aluminum 32h Front & Rear
SPOKES: Black Stainless 13 Gauge
TIRES: S Maxxis Rekon 27.5×2.4″, M/L/XL Maxxis Rekon 29×2.4″
TUBES: Butyl Rubber, Presta Valve

EBIKE SYSTEM

BATTERY: Aventon 708 WH. 36V LG 21700 cells.
CHARGER: 42V 4A charger

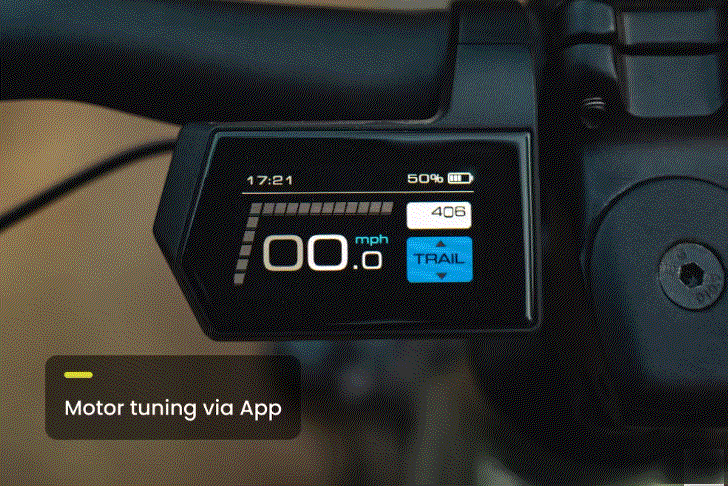

DISPLAY: LCD Smart “Easy Read”

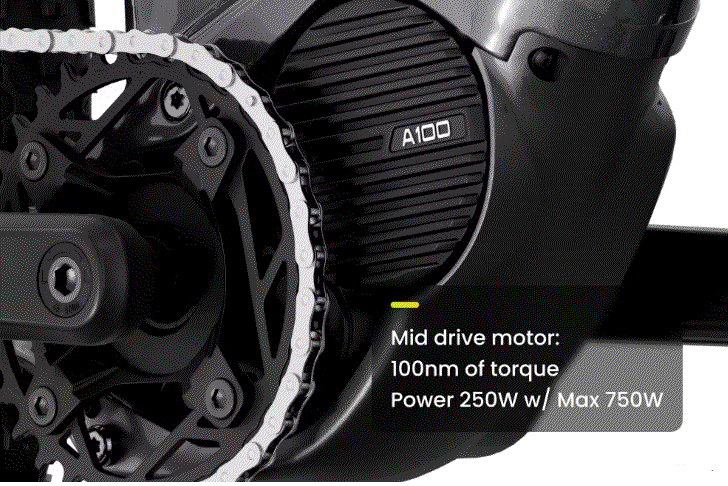

MOTOR: Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating

BRAKES

REAR BRAKE ROTOR: Sram 180mm 6 bolt
FRONT BRAKE ROTOR: Sram 200mm 6 bolt:

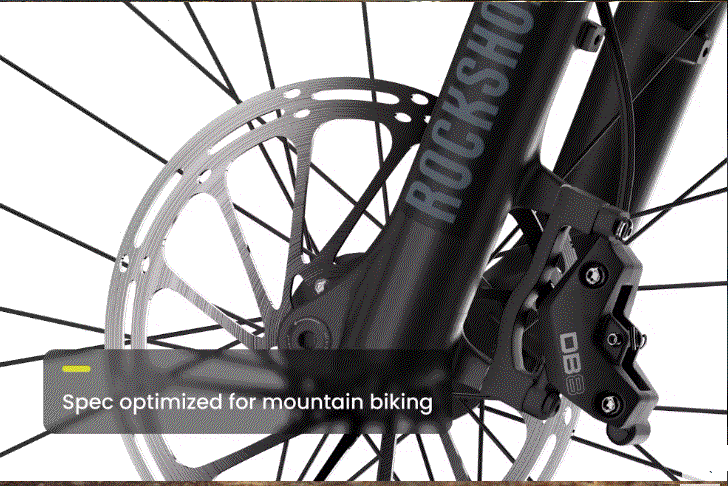

BRAKES: Sram DB8 mineral 4 piston hydraulic disc brakes

DRIVETRAIN

REAR DERAILLEUR: Sram NX Eagle 1×12
PEDALS: 9/16″ Alloy Platform
CHAINRING: Sram Nx 34t

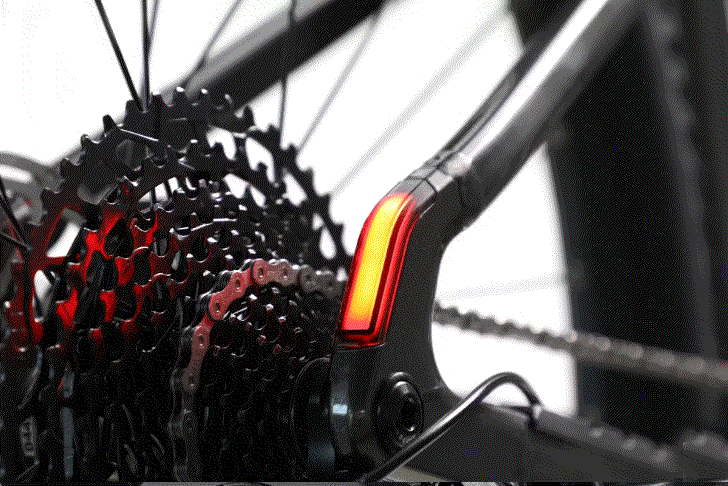

CASSETTE: Sram SX Eagle 1×12 11-50t
SHIFT LEVER: Sram NX Eagle 1×12 single click

COCKPIT

SEATPOST: 150mm travel for size M-XL. 125mm travel for size S. 31.6mm ø. 395mm length
HANDLEBARS: 35mm, 9° rise, 720mm width for size S, 760mm width for size M-XL
GRIPS: Lock on
STEM: 35mm Ø, 40mm length
SEAT CLAMP: Aventon 34.9mm

INCLUDED ACCESSORIES

KICKSTAND: Included in accessory box
FRONT HEAD LIGHT: Included in accessory box

Technical Overview

Ramblas comes out of the box as a Class I ebike, with pedal assist and a top speed of 20 MPH. Aventon’s Ramblas is built to the IP67-rated standard. IP67 rating means it’s protected against the effects of immersion in water to a depth between 15 cm and 1 meter. IP67-rated products are referred to as waterproof vs only water-resistant, so you can cross creeks, and ride in rain and mud without worry. Aventon ebikes are not intended to be subjected to a pressurized spray. Do not use a pressure washer or sprayer to clean your ebike.
